The Future of Retail: Economical BLE ESL Solutions That Drive Success
Boost your store’s appeal and streamline management with our BLE ESL solution. By employing Bluetooth Low Energy technology, our esl solution updates prices and product details instantly, reducing costs and enhancing the shopping experience.
How BLE ESL Solution Works

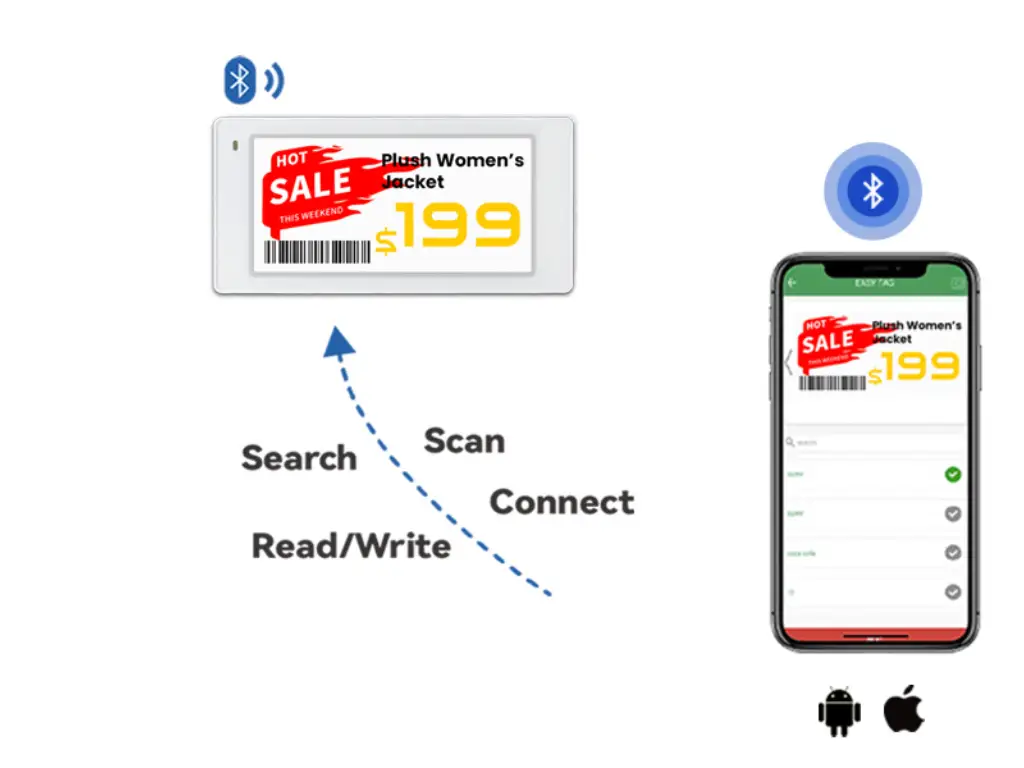

Our BLE ESLs use Bluetooth 5.0 to transmit images to the label by editing and saving images on the ESL server cloud, effectively storing images for quick reference. From the cloud, the images are transmitted to the mobile device, from which we update the display on the label, making it a highly effective digital price label.
Shelf Labels

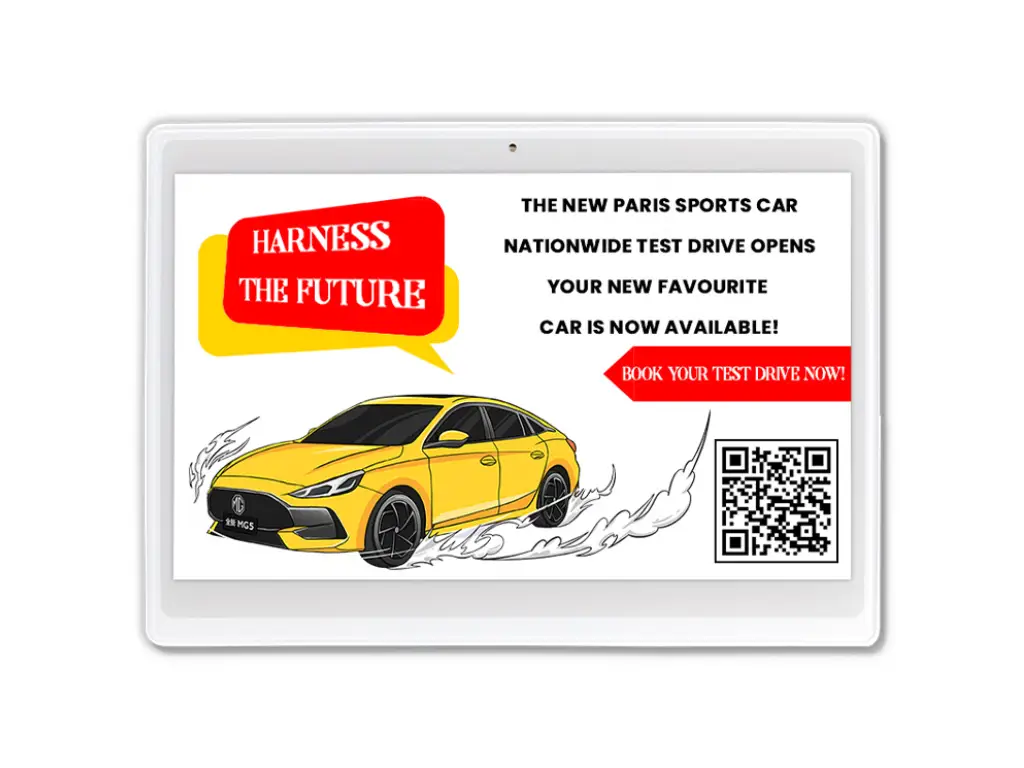

Technical Specification
Shell | Dimensions(W*H*D) | 178.0*127.0*9.0(mm) |
Casing Colors | White/Customized | |
Display | Active Area(H*V) | 163.2*97.9(mm) |
Resolution(H*V) | 800*480 | |
Pixel Colors | BW/BWR | |
Technology | Dot-matrix E-ink Epaper Display | |
Viewable Angle | Close to 180° | |
Communication Info. | Frequency | Bluetooth |
Protocol | Private Protocol | |
Distance | 5-10m | |
Success Rate | 100% | |
Battery | Type & Quantity | CR 2430*6 |
Life | ≥6 years | |
Replacement | Available Option | |
Operating Ambient | Temperature | 0°C~40°C |
Humidity | 45%~70%RH |
Technical Specification
Shell | Dimensions(W*H*D) | 71.3*35.6*12.0(mm) |
Casing Colors | White/Customized | |
Display | Active Area(H*V) | 48.6*23.7(mm) |
Resolution(H*V) | 250*122 | |
Pixel Colors | BW/BWR | |
Technology | Dot-matrix E-ink Epaper Display | |
Viewable Angle | Close to 180° | |
Communication Info. | Frequency | Bluetooth |
Protocol | Private Protocol | |
Distance | 5-10m | |
Success Rate | 100% | |
Battery | Type & Quantity | CR 2450*2 |
Humidity | 45%~70%RH | |
Life | ≥6 years | |
Replacement | Available Option | |
Operating Ambient | Temperature | 0°C~40°C |
Humidity | 45%~70%RH |

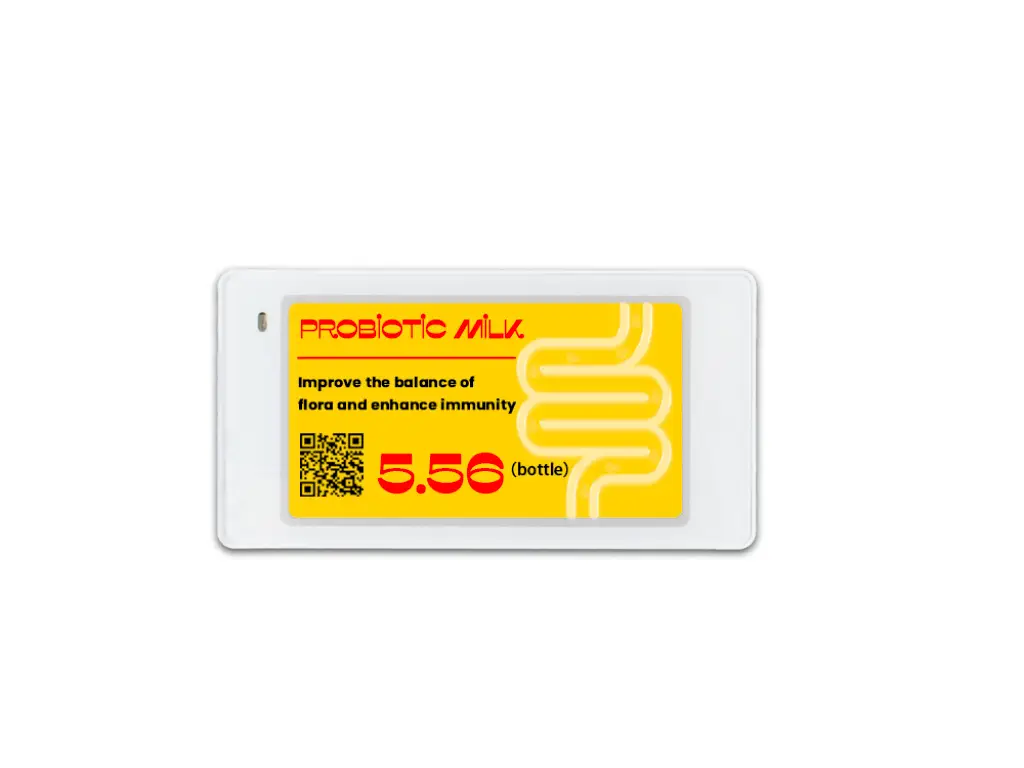

Technical Specification
Shell | Dimensions(W*H*D) | 91.2*41.0*12.0(mm) |
Casing Colors | White/Customized | |
Display | Active Area(H*V) | 66.9*29.1(mm) |
Resolution(H*V) | 296*152 | |
Pixel Colors | BW/BWR/BWY | |
Technology | Dot-matrix E-ink Epaper Display | |
Viewable Angle | Close to 180° | |
Communication Info. | Frequency | Bluetooth |
Protocol | Private Protocol | |
Distance | 5-10m | |
Success Rate | 100% | |
Battery | Type & Quantity | CR 2450*2 |
Life | ≥6 years | |
Replacement | Available Option | |
Operating Ambient | Temperature | 0°C~40°C |
Humidity | 45%~70%RH |
Technical Specification
Shell | Dimensions(W*H*D) | 99.2*89*12.0(mm) |
Casing Colors | White/Customized | |
Display | Active Area(H*V) | 84.8*63.6(mm) |
Resolution(H*V) | 400*300 | |
Pixel Colors | BW/BWR/BWY | |
Technology | Dot-matrix E-ink Epaper Display | |
Viewable Angle | Close to 180° | |
Communication Info. | Frequency | Bluetooth |
Protocol | Private Protocol | |
Distance | 5-10m | |
Success Rate | 100% | |
Battery | Type & Quantity | CR 2450*1 |
Life | ≥6 years | |
Replacement | Available Option | |
Operating Ambient | Temperature | 0°C~40°C |
Humidity | 45%~70%RH |
Technical Specification
Shell | Dimensions(W*H*D) | 99.2*89*12.0(mm) |
Casing Colors | White/Customized | |
Display | Active Area(H*V) | 84.8*63.6(mm) |
Resolution(H*V) | 400*300 | |
Pixel Colors | BW/BWR/BWY | |
Technology | Dot-matrix E-ink Epaper Display | |
Viewable Angle | Close to 180° | |
Communication Info. | Frequency | Bluetooth |
Protocol | Private Protocol | |
Distance | 5-10m | |
Success Rate | 100% | |
Battery | Type & Quantity | CR 2450*2 |
Life | ≥6 years | |
Replacement | Available Option | |
Operating Ambient | Temperature | 0°C~40°C |
Humidity | 45%~70%RH |
Technical Specification
Shell | Dimensions(W*H*D) | 195.8*137.7*13.0(mm) |
Casing Colors | White/Customized | |
Display | Active Area(H*V) | 163.2*97.9(mm) |
Resolution(H*V) | 800*480 | |
Pixel Colors | BW | |
Technology | Dot-matrix E-ink Epaper Display | |
Viewable Angle | Close to 180° | |
Communication Info. | Frequency | NFC |
Encryption | Optional | |
Distance | ＜1cm | |
Operating Ambient | Temperature | 0°C~40°C |
Humidity | 45%~70%RH | |
Other Info. | Power Supply | Wireless Power |
Response Time | 5S(Configurable) | |
SDK | Available |
Technical Specification
Shell | Dimensions(W*H*D) | 195.8*137.7*13.0(mm) |
Casing Colors | White/Customized | |
Display | Active Area(H*V) | 163.2*97.9(mm) |
Resolution(H*V) | 800*480 | |
Pixel Colors | BW | |
Technology | Dot-matrix E-ink Epaper Display | |
Viewable Angle | Close to 180° | |
Communication Info. | Frequency | NFC |
Encryption | Optional | |
Distance | ＜1cm | |
Operating Ambient | Temperature | 0°C~40°C |
Humidity | 45%~70%RH | |
Other Info. | Power Supply | Wireless Power |
Response Time | 5S(Configurable) | |
SDK | Available |
Benefits of BLE ESL in
Retail Display Solutions
Instant Product Info Updates

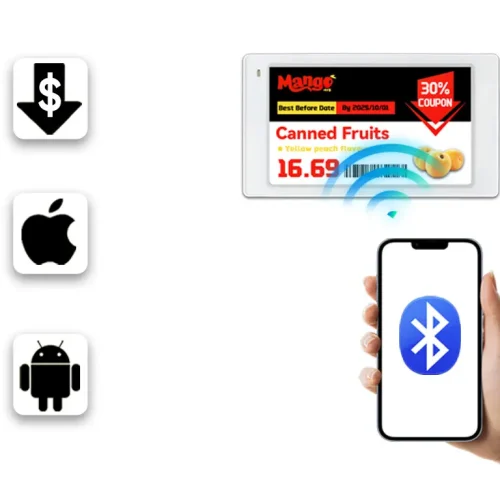

Leverage the power of BLE to remotely update tags from mobile devices, ensuring pricing consistency across your retail space. This method is not only convenient but also drastically reduces the potential for pricing errors on your shelf price labels.
Efficient Low Power Solutions
By utilizing BLE technology, electronic shelf labels consume less power, which means their batteries can last years without needing a change. This durability leads to lower maintenance costs and less labor, streamlining store operations.
Elevate Retail Customer Experience
Upgrade to electronic labels that not only display price but also offer crucial product insights like nutritional facts, ingredients, allergens, and customer reviews, significantly improving the consumer buying journey.
Minimize Human Resource Costs
By adopting BLE ESL technology for automatic price updates, retailers can eliminate the need for manual price changes on traditional labels, significantly reducing labor costs, especially when managing thousands of SKUs.
Eco-Friendly Practices Made Easy
Our BLE ESL solutions utilize electronic ink technology, significantly reducing paper use and aligning with green retail practices. This sustainable approach not only saves trees but also modernizes your store’s operations.
Integrate and Grow Effortlessly
BLE ESL offers superior SKU system compatibility, easily managed through any Bluetooth-enabled smart device. This accessibility eliminates the need for extra hardware, simplifying inventory management in retail environments.
Why Choose Smart Shelf
for
Your ESL Solutions?
Innovative R&D Team
Full Tech Support, Easy Install

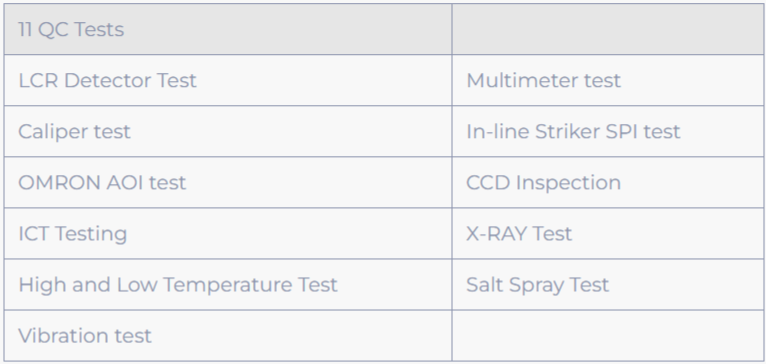

Strict Quality Checks Ensure Excellence
